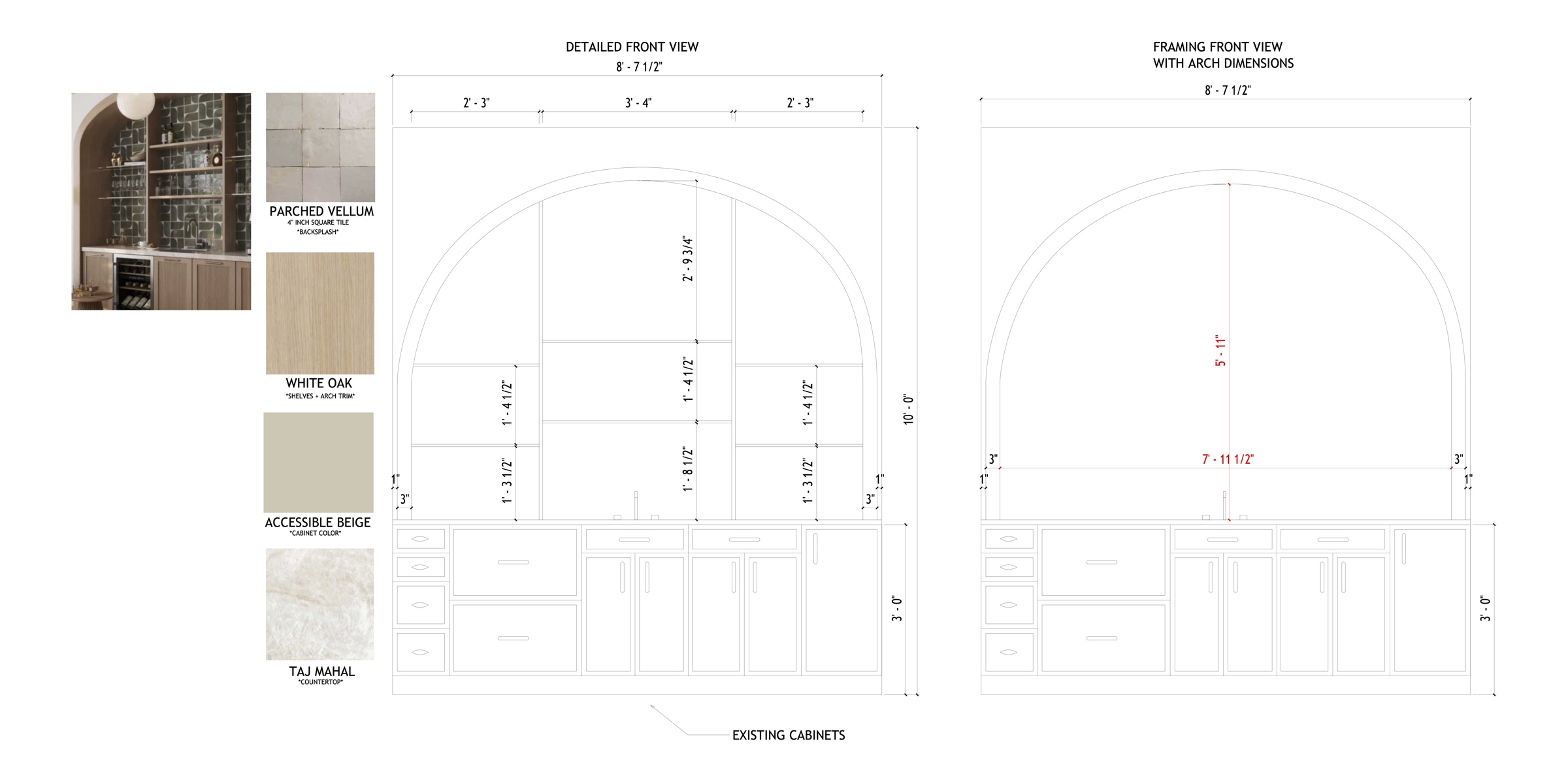

Arched bar elevations — detailed front view and framing view with arch dimensions

Project 02

Custom Cabinetry

Type: Residential millwork
Scope: Cabinetry design, dimensioned elevations, arch framing details, hard finish specification
Areas: Kitchen, arched bar, pantry & utility, bath

What you approve on paper is what gets installed.

Every run is drawn against the architectural plan before anything is ordered — appliance clearances, drawer stacks, filler widths, shelf spacing, and hardware placement resolved while they're still inexpensive to change. The drawings below are the documents a cabinetmaker builds from.

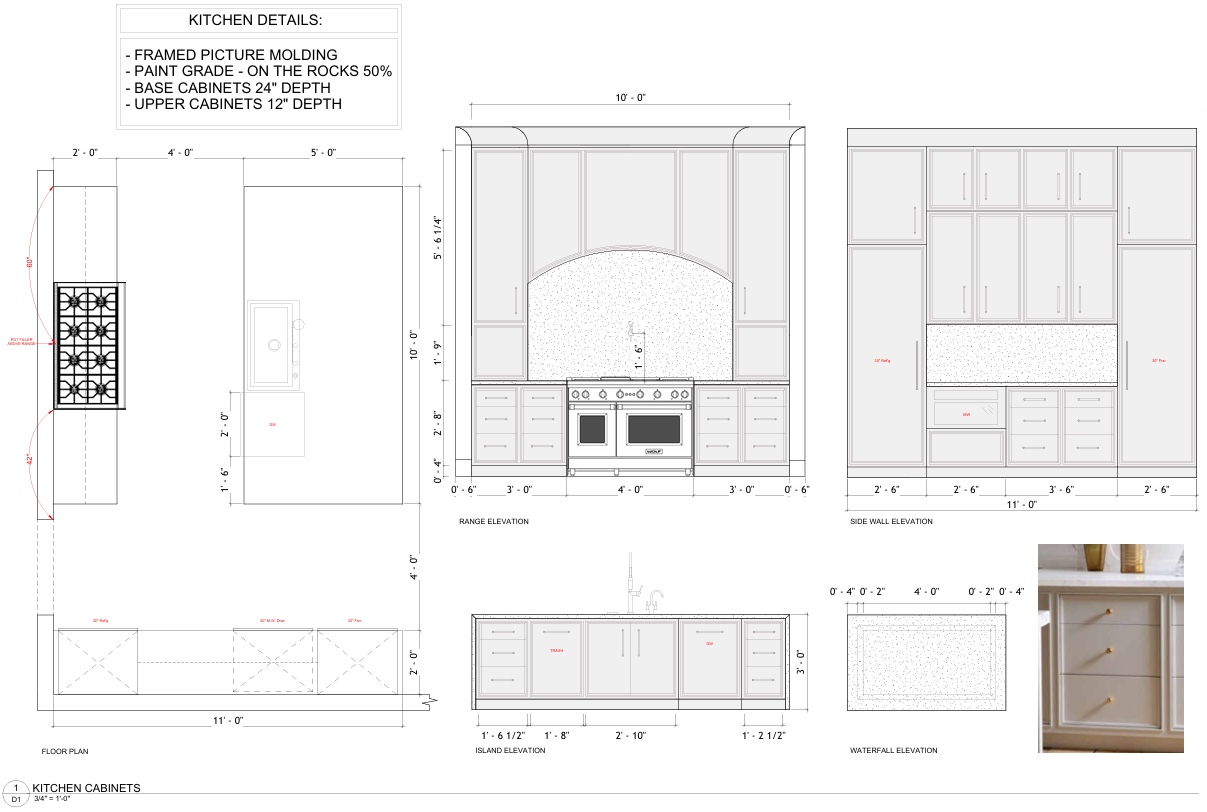

Kitchen

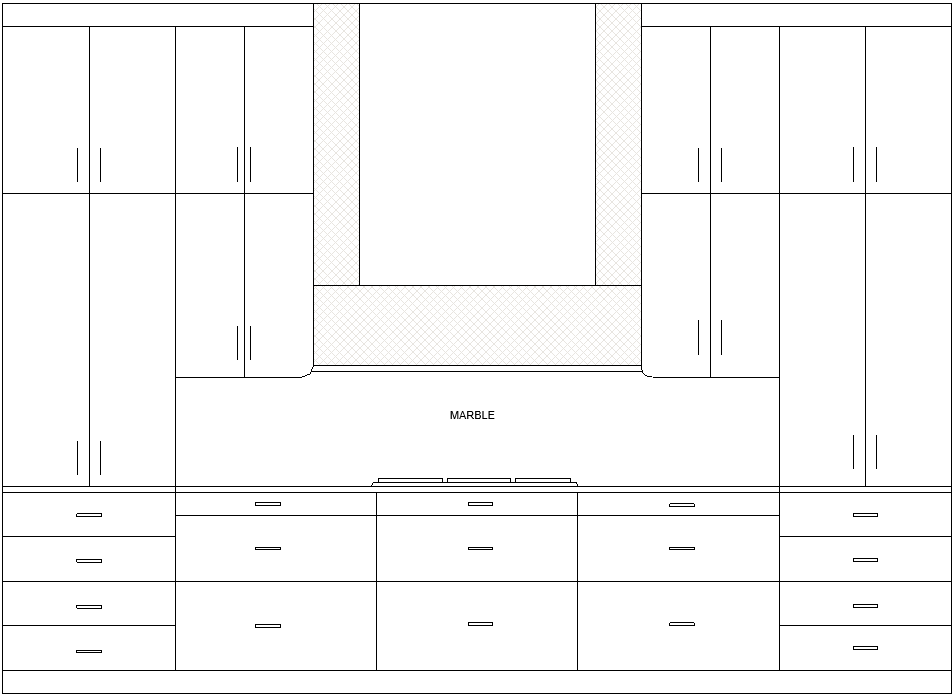

Range wall elevation with marble hood surround and flanking tall cabinets — Range wall — marble surround

Sink wall elevation with window above apron sink and panel-front refrigerator — Sink wall — window & panelled refrigerator

Arched Bar

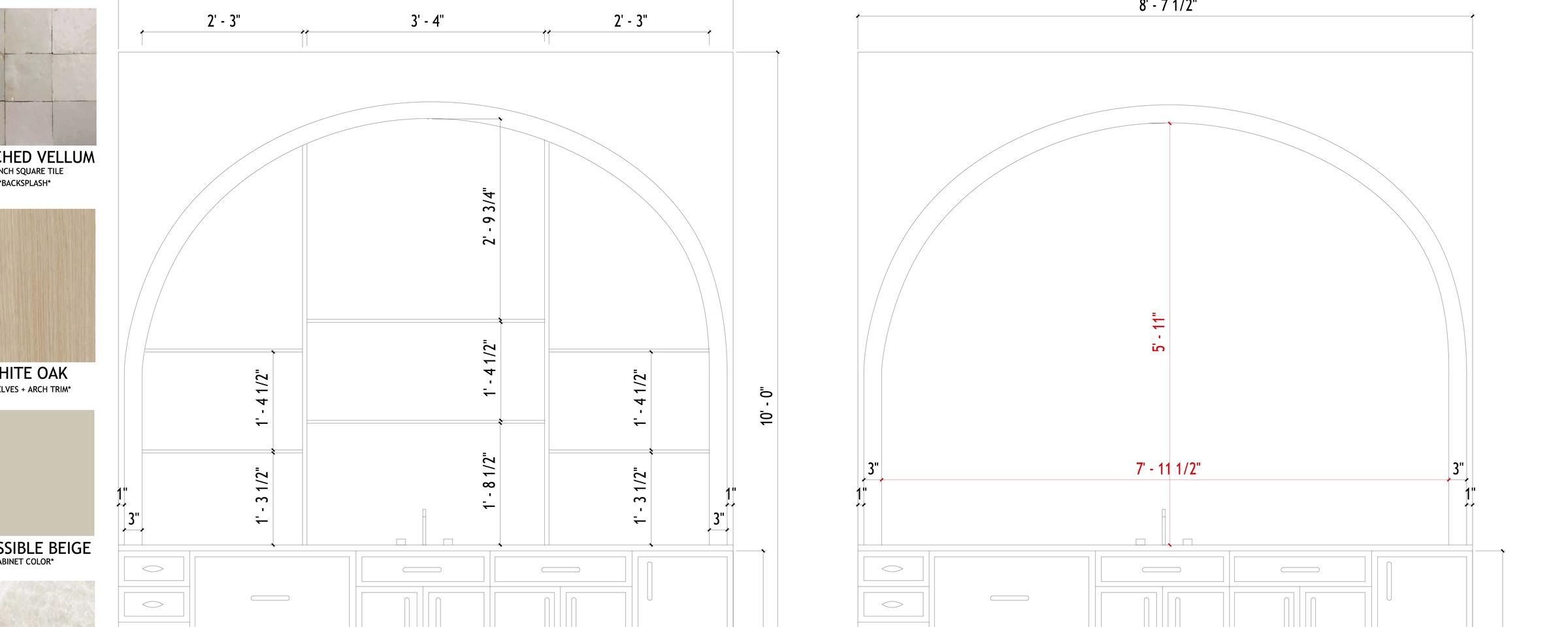

Built over existing base cabinets, the arch is drawn twice — once finished, once as framing — so the carpenter has the radius and spring line before the trim goes on. The opening spans 8'-7 1/2" with a 5'-11" rise inside a 10'-0" ceiling.

Pantry & Bath

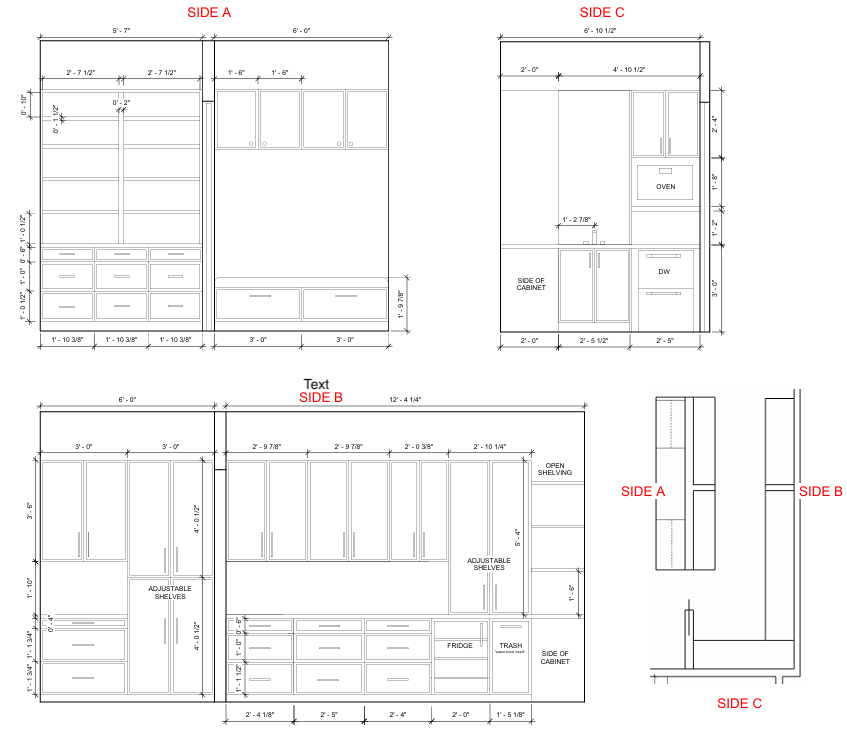

Pantry and utility elevations — sides A, B and C with oven, dishwasher, refrigerator and adjustable shelving — Pantry & utility — elevations A, B, C

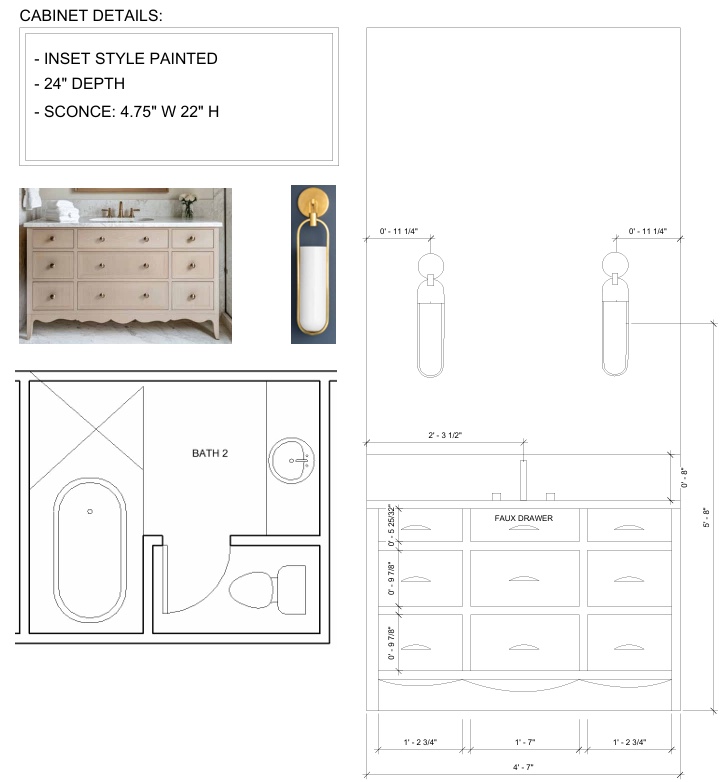

Bath vanity elevation with scalloped apron, faux drawer and sconce placement, plus bath floor plan — Bath — vanity elevation, plan & sconce placement

Specifications

Kitchen cabinet paint: On The Rocks 50%
Bar cabinet color: Accessible Beige
Bar countertop: Taj Mahal
Bar backsplash: Parched Vellum, 4" square tile
Shelves & arch trim: White oak
Range hood surround: Marble
Door style: Inset, framed picture molding
Cabinet depths: 24" base · 12" upper
